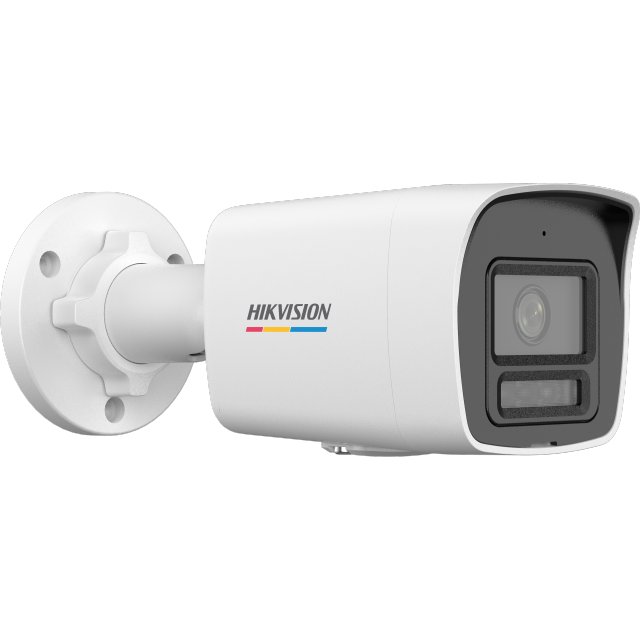

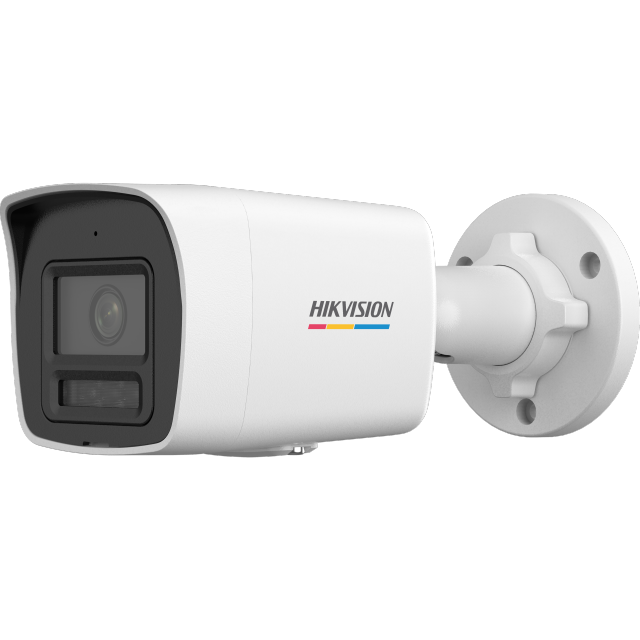

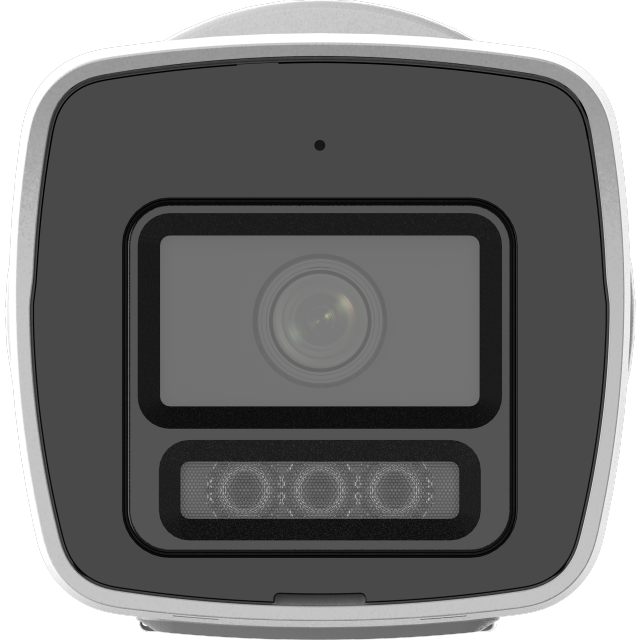

2MP ColorVu 3.0 Fixed Bullet Network Camera
DS-2CD1027G3-LIU(2.8mm)
High quality imaging with 2 MP resolution
24/7 colorful imaging
Support Person and Vehicle Detection
Smart Hybrid Light: advanced technology with long range cover
Provide real-time security via built-in two-way audio and strobe light alarm
Efficient H.265+ compression technology
Water and dust resistant (IP67)
Product Specifications
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Built-in Microphone |
Yes,1 built-in microphone |
| Built-in Speaker |
Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB |
| Power |
12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W |
| Material |
Front cover: metal, body: plastic, bracket: plastic |
| Dimension |
69.1 mm × 67.4 mm × 179 mm (2.7" × 2.7" × 7.1") |
| Weight |
Approx. 450 g (0.99 lb.) |
| EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety |
CB: IEC 62368-1: 2014+A11 |
| Protection |
IP67: IEC 60529-2013 |
