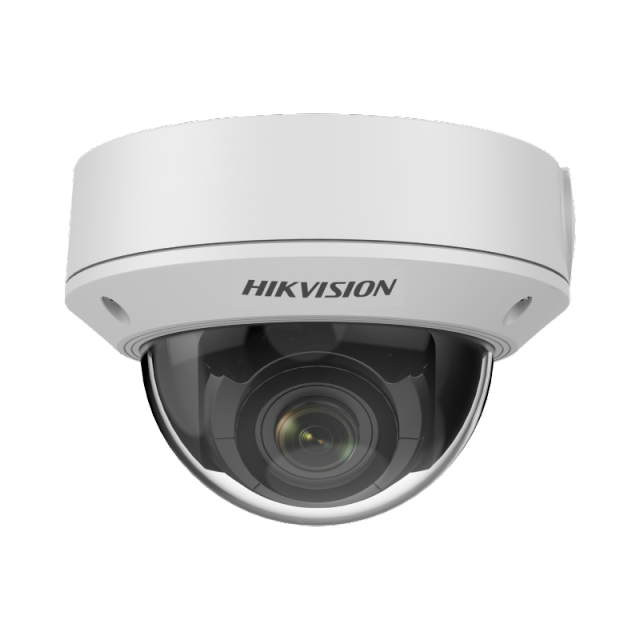

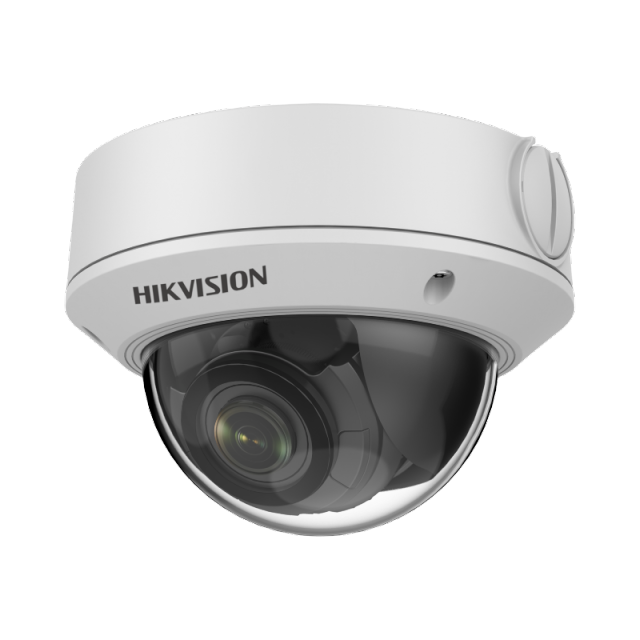

4 MP Varifocal Dome Network Camera | DS-2CD1743G2-IZ

Name: 4 MP Varifocal Dome Network Camera | DS-2CD1743G2-IZ
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 311320819
Price: 341.6 SGD
Availability: InStock

DS-2CD1743G2-IZ(2.8-12mm)

- 4MP resolution
- Support Human and Vehicle Detection
- 2.8 to 12 mm motorized varifocal lens
- Up to 256 GB memory card slot for storage
- Water and dust resistant (IP67) & vandal proof (IK10)
- Efficient H.265+ compression technology

S$341.60 ~~S$707.60~~

(Excluding GST)

Add to Favorite Items

Description

DS-2CD1743G2-IZ(2.8-12mm)
4MP MD 2.0 Varifocal Dome Network Camera

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB SD card slot for storage
Water and dust resistant (IP67) and vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology

Product Specifications

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Wide Dynamic Range	120 dB
Field of Vision	2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
IR Distance	Up to 50 m
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Max. Resolution	2560 × 1440
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 、 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Power	12 VDC ± 25%, 0.9 A, max. 11 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection	IP67: IEC 60529-2013; IK10: IEC 62262: 200
Material	Metal
Dimensions	Ø 141 mm × 99.9 mm (Ø 5.6" × 3.9")
Weight	Approx. 820 g (1.8 lb.)
