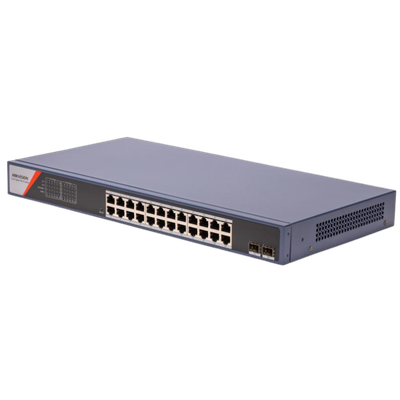

DS-3E1526P-SI-24P2F
Smart Managed 24-Port Gigabit PoE Switch
Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Product Specifications
PoE Standard
|
IEEE 802.3af, IEEE 802.3at
|
PoE Port
|
PoE: Ports 1 to 24
|
Port Number
|
24 × gigabit PoE port, and 2 × gigabit fiber optical port
|
Max. Port Power
|
30 W
|
PoE Power Budget
|
370 W
|
Packet Forwarding Rate
|
41.66 Mpps
|
MAC Address Table
|
8 K
|
Switching Capacity
|
56 Gbps
|
Surge Protection
|
6 kV
|
Internal Cache
|
4.1 Mbits
|
Shell
|
Metal material
|
Net Weight
|
2.81 kg (6.19 lb)
|
Gross Weight
|
3.73 kg (8.22 lb)
|

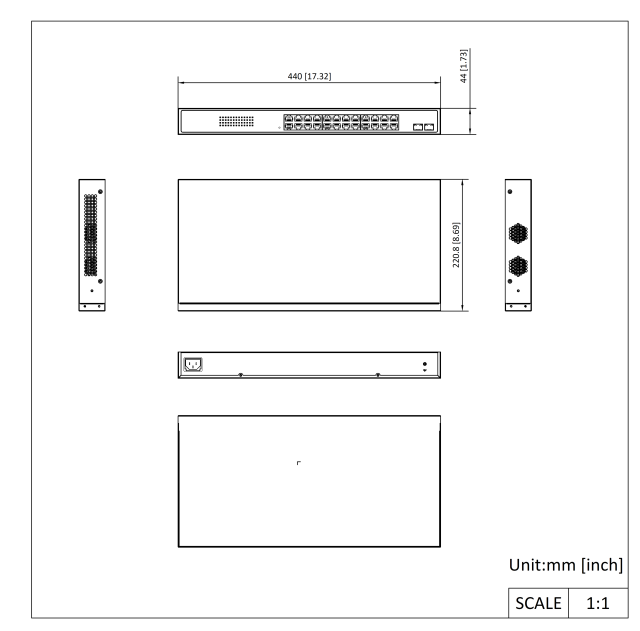

Dimension (W × H × D)
|
440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
|
Datasheet
Download Datasheet
