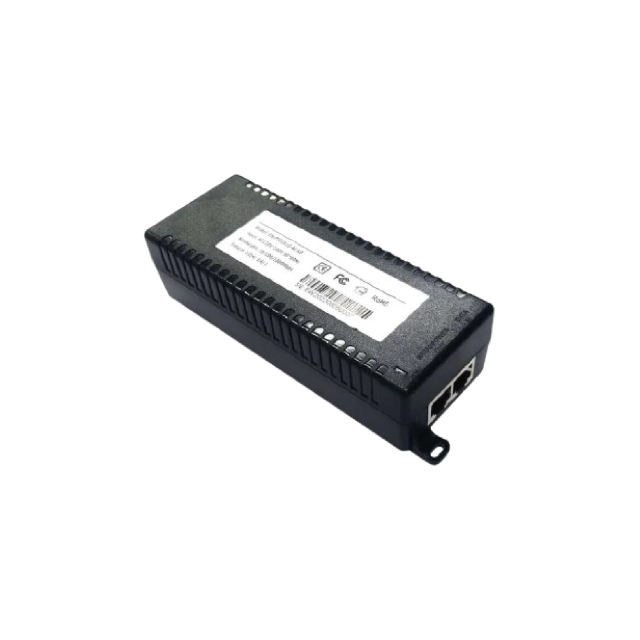

MESILIX 60W POE Injector | MS-XA-MSLPSE101

Name: MESILIX 60W POE Injector | MS-XA-MSLPSE101
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103822
Price: 84 SGD
Availability: InStock

MS-XA-MSLPSE101 (60W POE Injector)

- Compatible with IEEE802.3af/at/bt standard.
- Supply power to HD network surveillance cameras with Cat5e (PoE).
- No fan,natural heat dissipation,small,quiet design,suitable for desktop or wall.

S$84.00 ~~S$168.00~~

(Excluding GST)

Add to Favorite Items

Description

XA-MSLPSE101
MESILIX 60W POE Injector

Product Specifications

Parameters	Specifications
Product Name	1000M Single Port PoE Injector 60W
Port Description	2x copper cable RJ45 ports,1x AC input port
PoE Power Supply	mid-span: 4/5,7/8 data line pair (default); end-span: 1/2,3/6 spare line pair (can be customized)
Network Medium	1000BASE-TX: 5 Cat and more UTP (≤ 100meters)
Thermal Protection	>100°C
Performance	Working rate: 1000Mbps working rate Network port protection: meet with IEC61000-4-2(ESD) MTBF: 100,000hours
PoE Standard	IEEE 802.3af/at/bt
LEDs Indicator	PoE working status
Power	Total power: 60W PoE port power: 60W AC input voltage: 100~240V Output Voltage: 52V
Dimensions/Weight	LxWxH:1425640mm(mm), 0.14kg Power: Lights up after power on
Working Environment	Operating Temperature: - 20°~55°C Storage Temperature: - 20°~75°C Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%, non-condensing
Warranty	CE mark, commercial, FCC Part 15 Class B, Ro HS 1-year warranty

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

MESILIX 60W POE Injector | MS-XA-MSLPSE101

Quantity

Parameters

Specifications

Product Name

1000M Single Port PoE Injector 60W

Port Description

2x copper cable RJ45 ports,1x AC input port

PoE Power Supply

mid-span: 4/5,7/8 data line pair (default); end-span: 1/2,3/6 spare line pair (can be customized)

Network Medium

1000BASE-TX: 5 Cat and more UTP (≤ 100meters)

Thermal Protection

>100°C

Performance

Working rate: 1000Mbps working rate Network port protection: meet with IEC61000-4-2(ESD) MTBF: 100,000hours

PoE Standard

IEEE 802.3af/at/bt

LEDs Indicator

PoE working status

Power

Total power: 60W PoE port power: 60W AC input voltage: 100~240V Output Voltage: 52V

Dimensions/Weight

LxWxH:142*56*40mm(mm), 0.14kg Power: Lights up after power on

Working Environment

Operating Temperature: - 20°~55°C Storage Temperature: - 20°~75°C Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%, non-condensing

Warranty

CE mark, commercial, FCC Part 15 Class B, Ro HS 1-year warranty

Datasheet

Working rate: 1000Mbps working rate
Network port protection: meet with IEC61000-4-2(ESD)
MTBF: 100,000hours

Total power: 60W
PoE port power: 60W
AC input voltage: 100~240V
Output Voltage: 52V

LxWxH:1425640mm(mm), 0.14kg Power: Lights up after power on

Operating Temperature: - 20°~55°C
Storage Temperature: - 20°~75°C
Working Humidity: 10%~90%, non-condensing
Storage Humidity: 10%~95%, non-condensing

CE mark, commercial, FCC Part 15 Class B, Ro HS
1-year warranty
