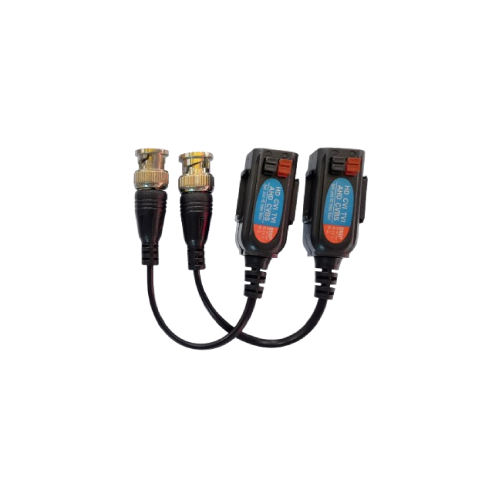

Single channel HD video, power transceiver (UTEPO) | UTP101PV-HD12
- Transmit video and provide camera power at the same time.
- HDCVI, HDTVI, AHD,
Transmission Signal |
1 channel |
Transmission Distance |
HDTVI-720P/1080P: 200m;4MP: 230m; 8MP: 180m; |
|
HDCVI-720P: 300m ; 1080P/8MP: 200m; 4MP: 250m; |
|
AHD: -1080P: 350m; 4MP: 250m; 5MP: 180m; 8MP: 300m; |
|
Analog video: 600m; |
Coaxial Video Port |
Male BNC |
Twisted-pair Video Port |
1*RJ45 port |
Video Compatibility |
HDCVI/HDTVI/AHD/Analog, |
|
PAL/NTSC/SECAM Video |
Bandwidth |
0~50MHz |
Anti-interference |
>60dB |
Coaxial Port Protection |
2KV(common-mode) |
|
Per: IEC61000-4-5 |
Twisted pair video port protection |
2KV(different-mode)4KV(common-mode) |
ESD |
1a Contact discharge level 3 |
|
1b Air discharge level 3 |
|
Per: IEC61000-4-2 |
Operating Temperature |
0~55℃ |
Storage Temperature |
-20℃~70℃ |
Humidity |
0~95% Non-condensing |
Size |
79mm×36mm×22mm(with connector ) |
Shell |
ABS proiect plastic |
Weight |
42g |
